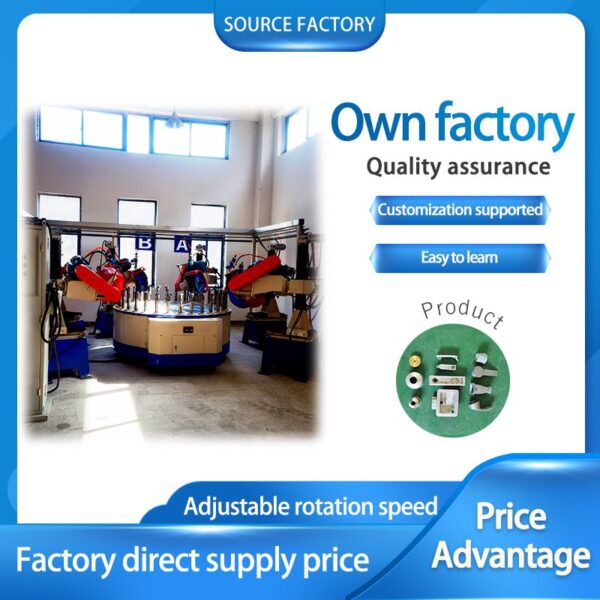

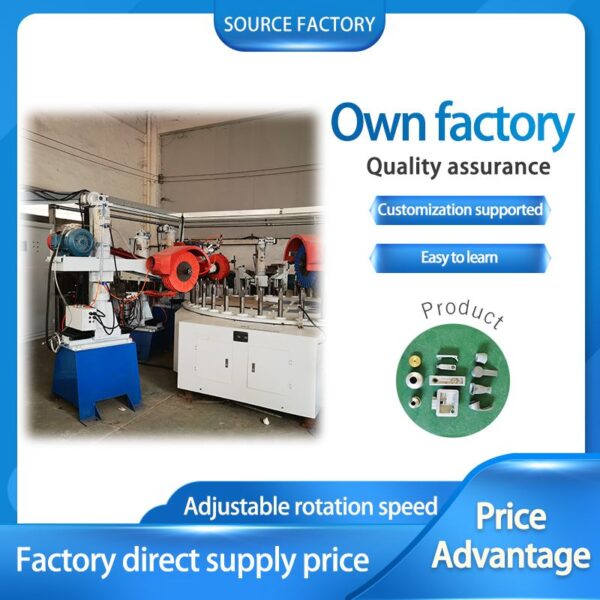

Disc polishing machine equipment diagram

Using polishing cloth wheels, multiple polishing cloth wheels can be fitted around the disc-type frame, significantly increasing polishing output. One machine is equivalent to 10 polishing workers.

2. Polishing effects and efficiency can be customized according to the product; configuration can also be customized.

3. The product’s rotation speed is adjustable.

4. The polishing head is equipped with an electrically adjustable stroke.

5. The disc polishing machine is simple to learn and operate.

6. The disc polishing machine requires fewer fixtures.

7. The polishing machine has a small footprint.

3. Product Parameters:
Custom Disc: φ1500mm-5000mm, one
Custom Polishing Head: 4-26
Main Motor for Polishing Head: Standard configuration 4/5.5/7.5KW three-phase asynchronous motor with frequency converter (subject to customization)
Polishing Wheel: φ450-550mm (subject to customization) Polishing wheel speed: 1440-1800 RPM (subject to customization)
Total power: 30-170 KW (subject to customization)
Power consumption: 18-100 KW/h (subject to customization)
Footage (L x W x H): 4500mm x 5500mm x 3000mm (example, subject to customization)
Weight: 6000kg-30000kg (subject to customization)
Waxing method: Liquid polishing wax

Principle: The workpiece is driven by a chain, and the product can be polished by rotating on each polishing head as the disc revolves.
Features: Suitable for round parts or bathroom faucet handles.
Materials: Zinc alloy, aluminum alloy, copper, stainless steel, and other hardware products.
Industries: Bathroom fixtures, locks, automobiles, lighting, bicycles, etc.
